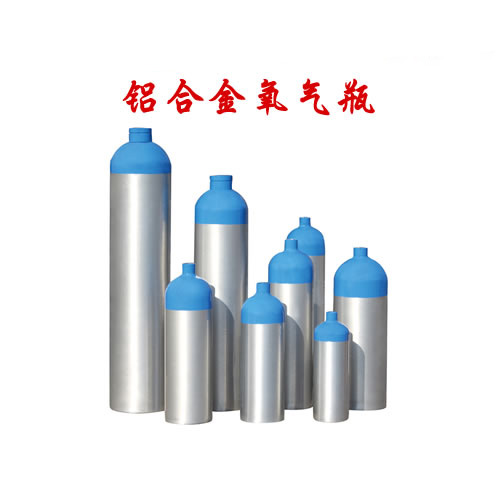

鋁合金氣瓶
鋁合金氣瓶
產品介紹
鋁合金氣瓶
技術參數
| 工業用標準氣瓶(Industrial Standard Gas Cylinder) | |||||||||||||
|
品號 Part No. |
型號 Model |
外徑 Outside Diameter |
容積 Water Capacity |
壁厚 Wall Thickness |
工作壓力 Service Pressure |
重量 Weight |
高度 Length |
||||||
| mm | in | Lts | Cu in | mm | in | bar | psi | kgs | lbs | mm | in | ||
| I1 | LWH82-0.7-15 | 82 | 3.2 | 0.7 | 42.7 | 4.2 | 0.2 | 150 | 2175.6 | 0.9 | 2.0 | 235 | 9.3 |
| I2 | LWH89-0.5-15 | 89 | 3.5 | 0.5 | 30.5 | 4.5 | 0.2 | 150 | 2175.6 | 0.8 | 1.8 | 167 | 6.6 |
| I3 | LWH89-0.7-15 | 89 | 3.5 | 0.7 | 42.7 | 4.5 | 0.2 | 150 | 2175.6 | 0.9 | 2.0 | 208 | 8.2 |
| I4 | LWH89-1.0-15 | 89 | 3.5 | 1.0 | 61.0 | 4.5 | 0.2 | 150 | 2175.6 | 1.2 | 2.6 | 269 | 10.6 |
| I5 | LWH89-1.4-15 | 89 | 3.5 | 1.4 | 85.4 | 4.5 | 0.2 | 150 | 2175.6 | 1.5 | 3.3 | 350 | 13.8 |
| I6 | LWH108-2.0-15 | 108 | 4.3 | 2.0 | 122.0 | 5.5 | 0.2 | 150 | 2175.6 | 2.1 | 4.7 | 340 | 13.4 |
| I7 | LWH140-4.0-15 | 140 | 5.5 | 4.0 | 244.1 | 7.1 | 0.3 | 150 | 2175.6 | 4.2 | 9.3 | 410 | 16.1 |
| I8 | LWH140-5.0-15 | 140 | 5.5 | 5.0 | 305.1 | 7.1 | 0.3 | 150 | 2175.6 | 4.9 | 10.8 | 500 | 19.7 |
| I9 | LWH140-6.0-15 | 140 | 5.5 | 6.0 | 366.1 | 7.1 | 0.3 | 150 | 2175.6 | 5.6 | 12.3 | 580 | 22.8 |
| I10 | LWH140-7.0-15 | 140 | 5.5 | 7.0 | 427.2 | 7.1 | 0.3 | 150 | 2175.6 | 6.3 | 13.9 | 662 | 26.1 |
| I11 | LWH140-8.0-15 | 140 | 5.5 | 8.0 | 488.2 | 7.1 | 0.3 | 150 | 2175.6 | 7.4 | 16.3 | 741 | 29.2 |
| I12 | LWH159-6.3-15 | 159 | 6.3 | 6.3 | 384.5 | 8.0 | 0.3 | 150 | 2175.6 | 6.2 | 13.7 | 495 | 19.5 |
| I13 | LWH159-8.0-15 | 159 | 6.3 | 8.0 | 488.2 | 8.0 | 0.3 | 150 | 2175.6 | 7.4 | 16.3 | 605 | 23.8 |
| I14 | LWH159-10.0-15 | 159 | 6.3 | 10.0 | 610.2 | 8.0 | 0.3 | 150 | 2175.6 | 8.8 | 19.4 | 730 | 28.7 |
| I15 | LWH203-16.0-15 | 203 | 8.0 | 16.0 | 976.4 | 10.3 | 0.4 | 150 | 2175.6 | 15.6 | 34.4 | 746 | 29.4 |
| I16 | LWH203-20.0-15 | 203 | 8.0 | 20.0 | 1220.5 | 10.3 | 0.4 | 150 | 2175.6 | 17.0 | 37.5 | 900 | 35.4 |
| I17 | LWH232-20.0-15 | 232 | 9.1 | 20.0 | 1220.5 | 11.7 | 0.5 | 150 | 2175.6 | 19.6 | 43.2 | 714 | 28.1 |
| I18 | LWH232-30.0-15 | 232 | 9.1 | 30.0 | 1830.7 | 11.7 | 0.5 | 150 | 2175.6 | 26.0 | 57.3 | 1008 | 39.7 |
| I19 | LWH232-40.0-15 | 232 | 9.1 | 40.0 | 2441.0 | 11.7 | 0.5 | 150 | 2175.6 | 32.0 | 70.5 | 1300 | 51.2 |
| I20 | LWH250-50.0-20 | 250 | 9.8 | 50.0 | 3051.2 | 16.7 | 0.7 | 200 | 2900.8 | 55.0 | 121.3 | 1500 | 59.1 |
